Portable X-Ray Inspection System
The uniXSCAN H2PX is a portable X-ray inspection system designed for rapid deployment in security, law enforcement, and inspection environments where flexible mobile screening is required. The system combines a lightweight digital acquisition console, a high resolution wireless flat panel detector, and a portable pulsed X-ray generator to enable detailed radiographic inspection of suspicious objects and concealed items.

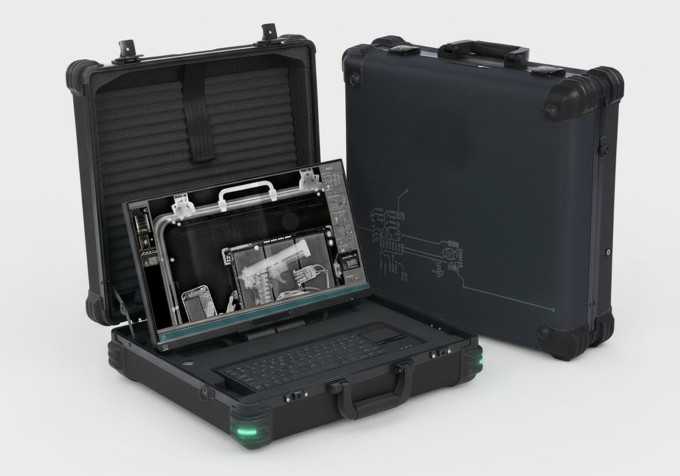

The compact system architecture allows the equipment to be transported and deployed quickly in the field. A durable composite acquisition case with integrated touchscreen display provides a complete mobile workstation for image acquisition and evaluation. The wireless detector and portable generator allow flexible positioning during inspection operations, supporting detailed imaging even in confined or remote environments.
Designed for operational mobility and fast setup, the uniXSCAN H2PX enables reliable portable radiography for security inspections, forensic investigations, and rapid response screening tasks.
Key Features
uniXSCAN H2PX
Portable X-Ray Inspection Workstation

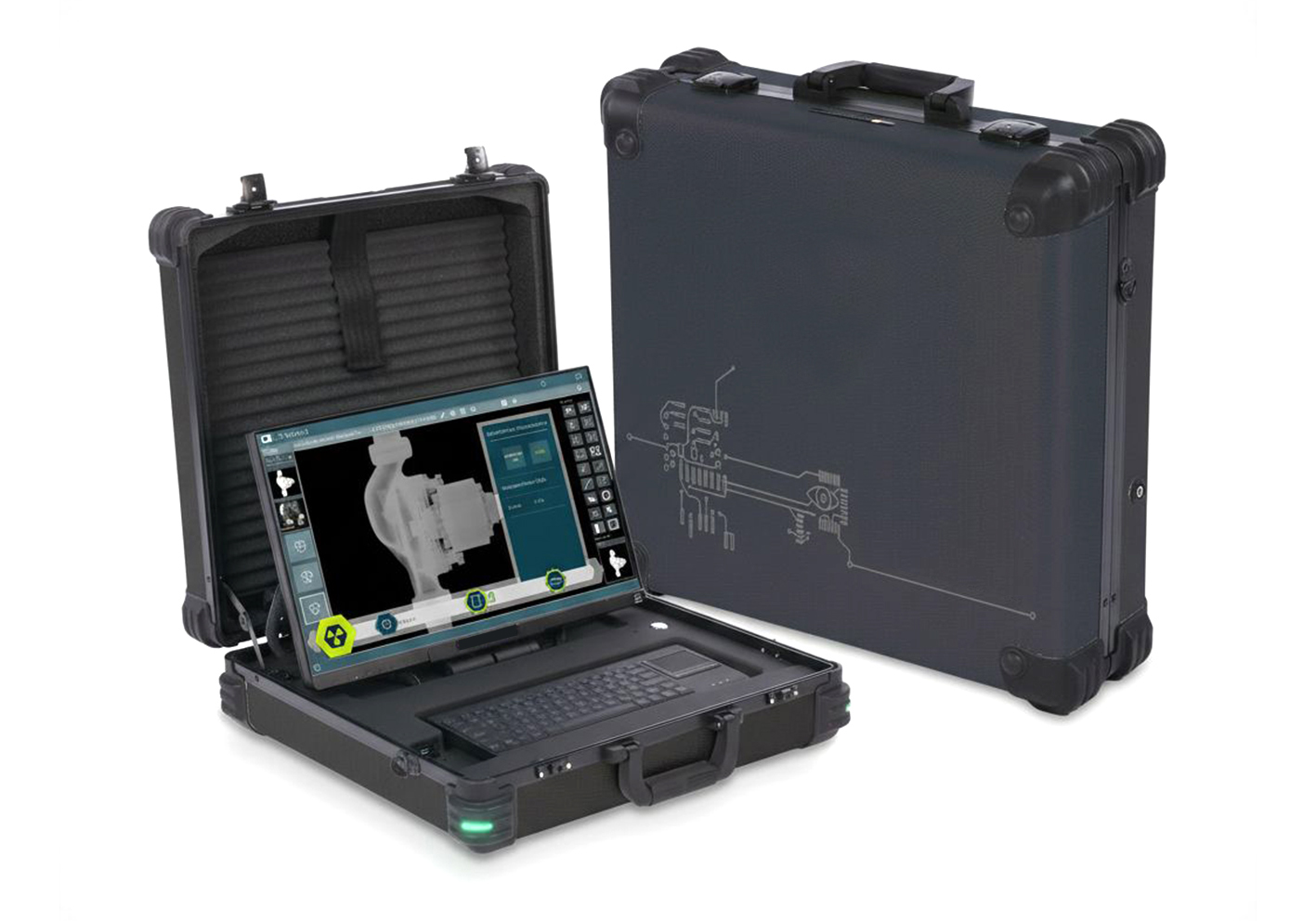

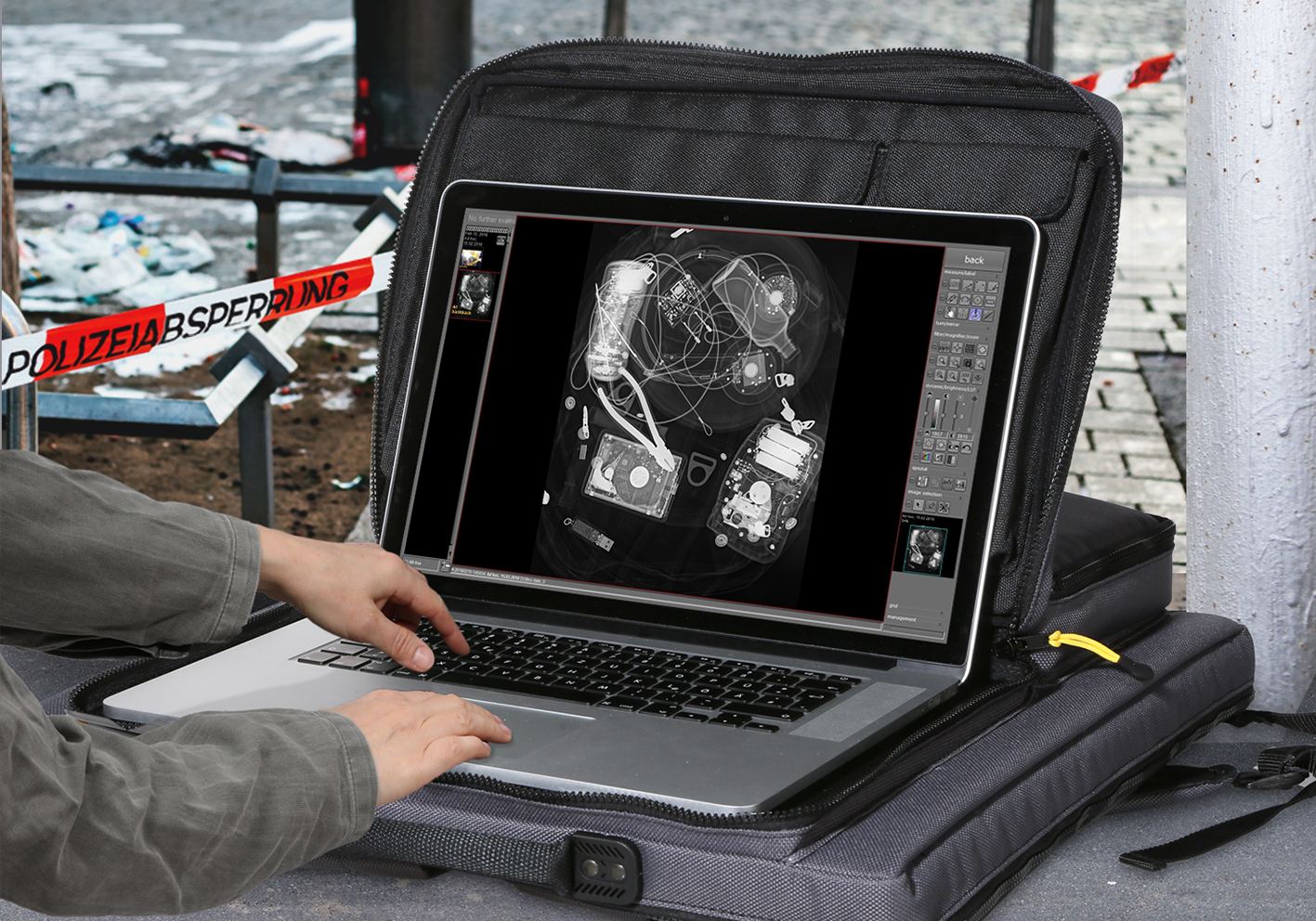

Portable X-Ray Image Analysis Console

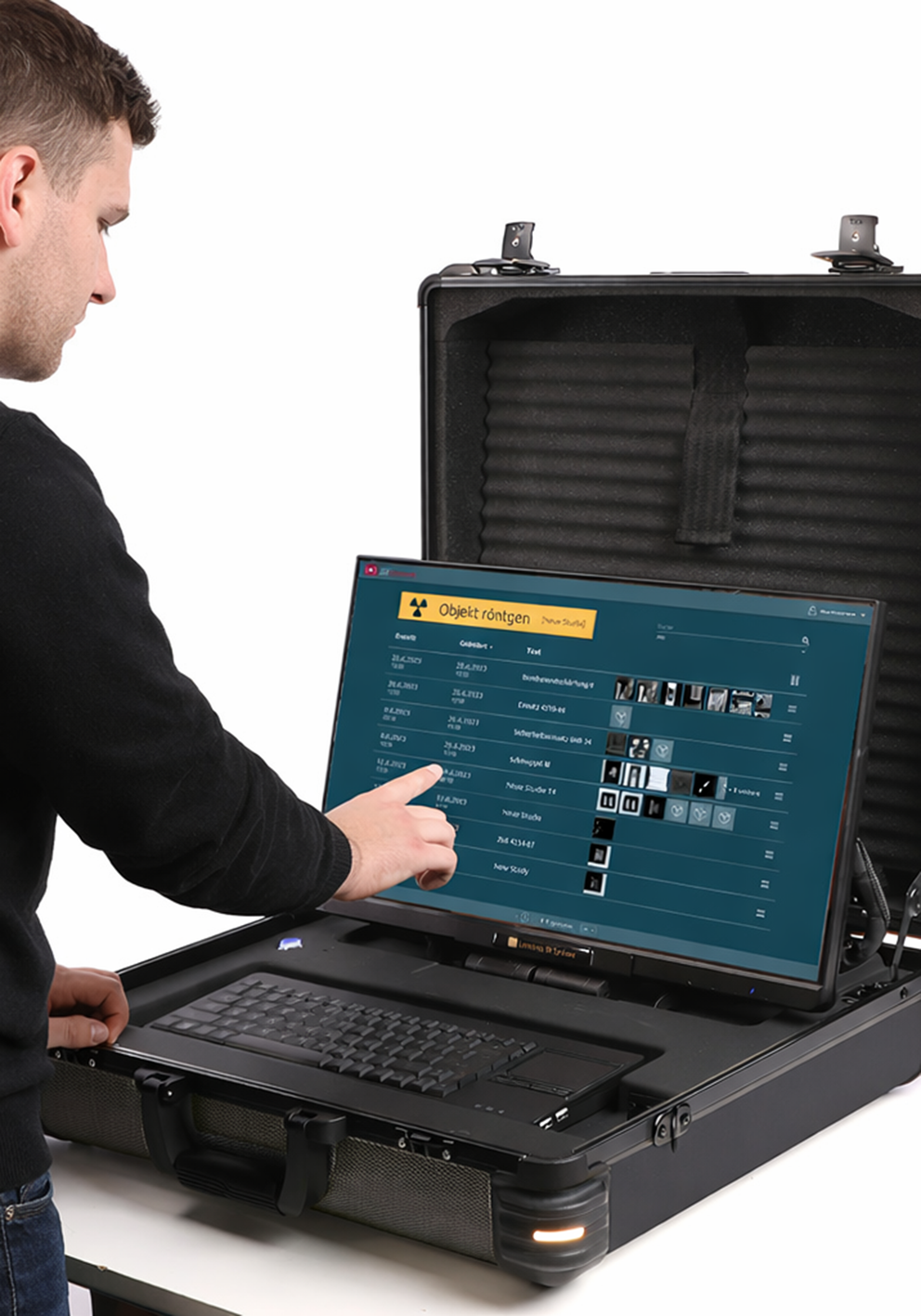

Touchscreen Image Control Interface

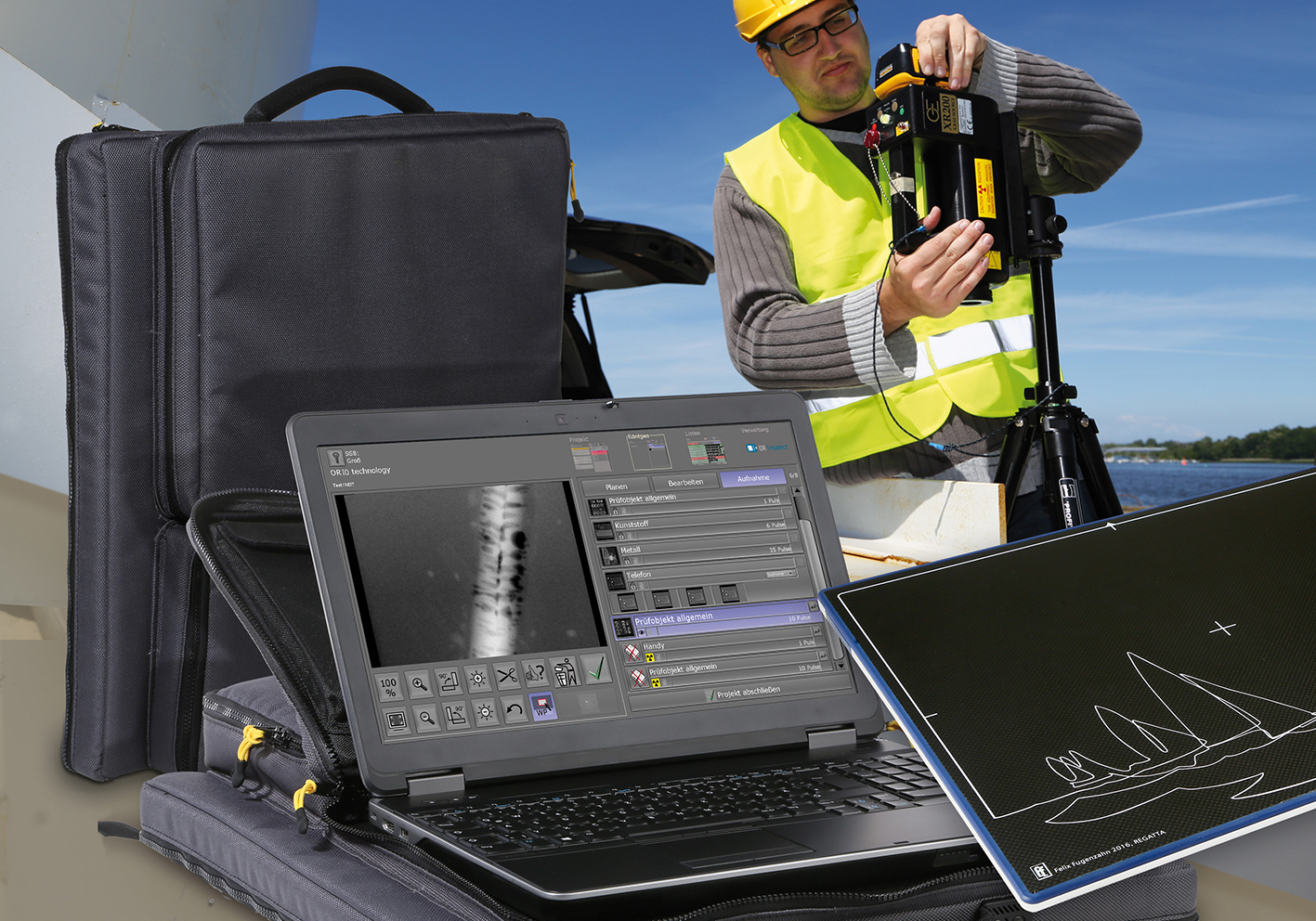

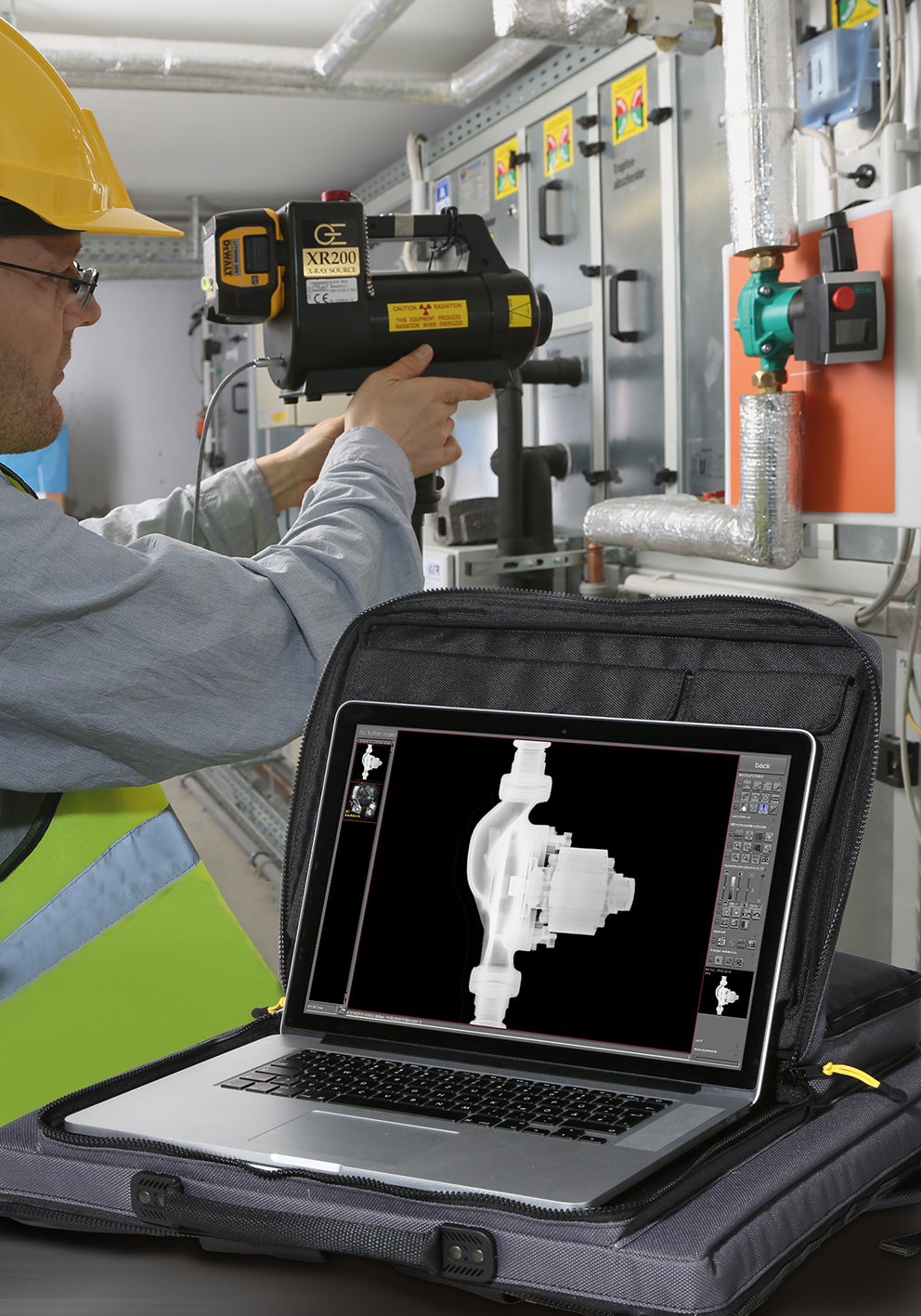

Field Radiography Inspection
Rapid Mobile Inspection Capability

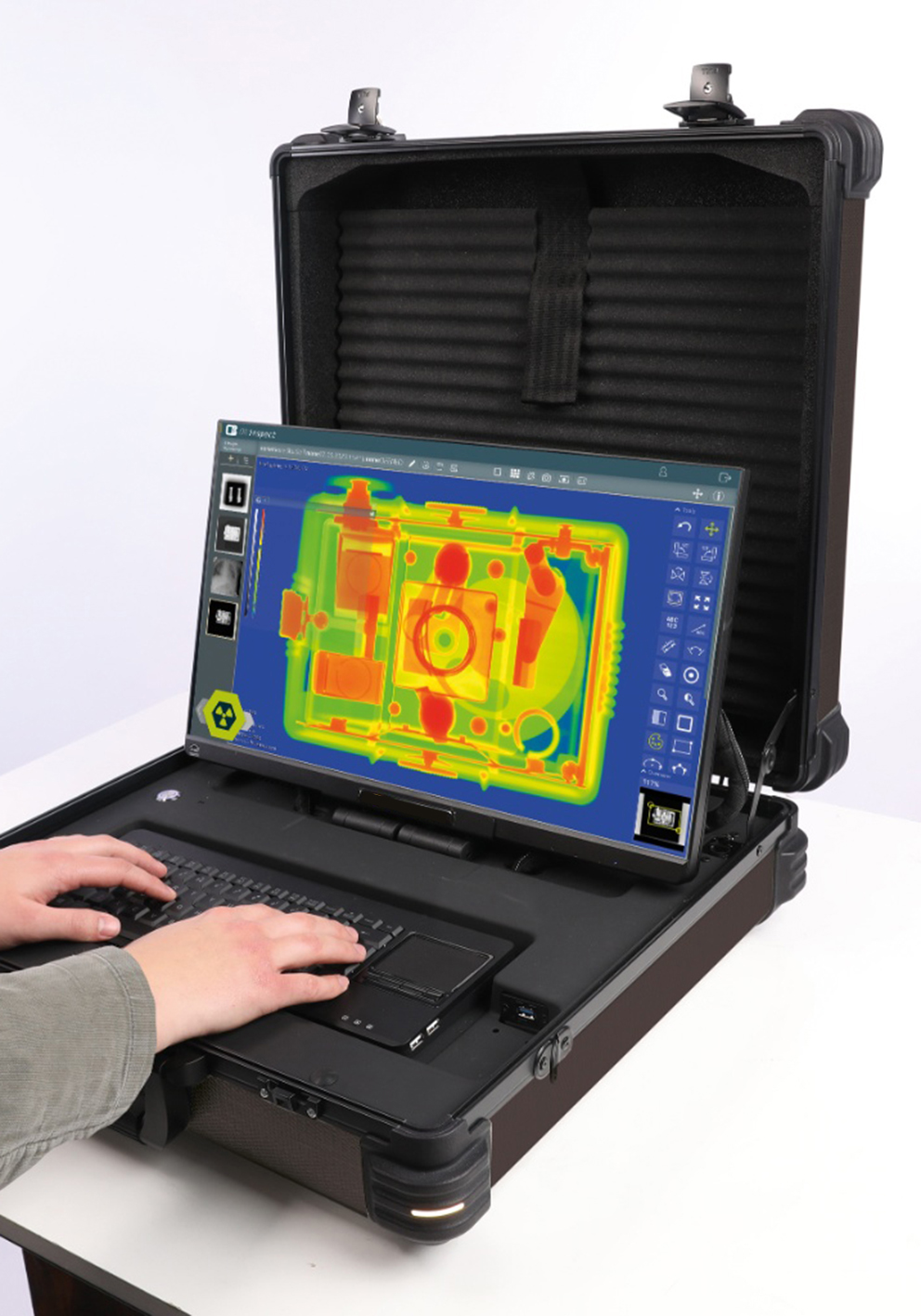

Field Image Review

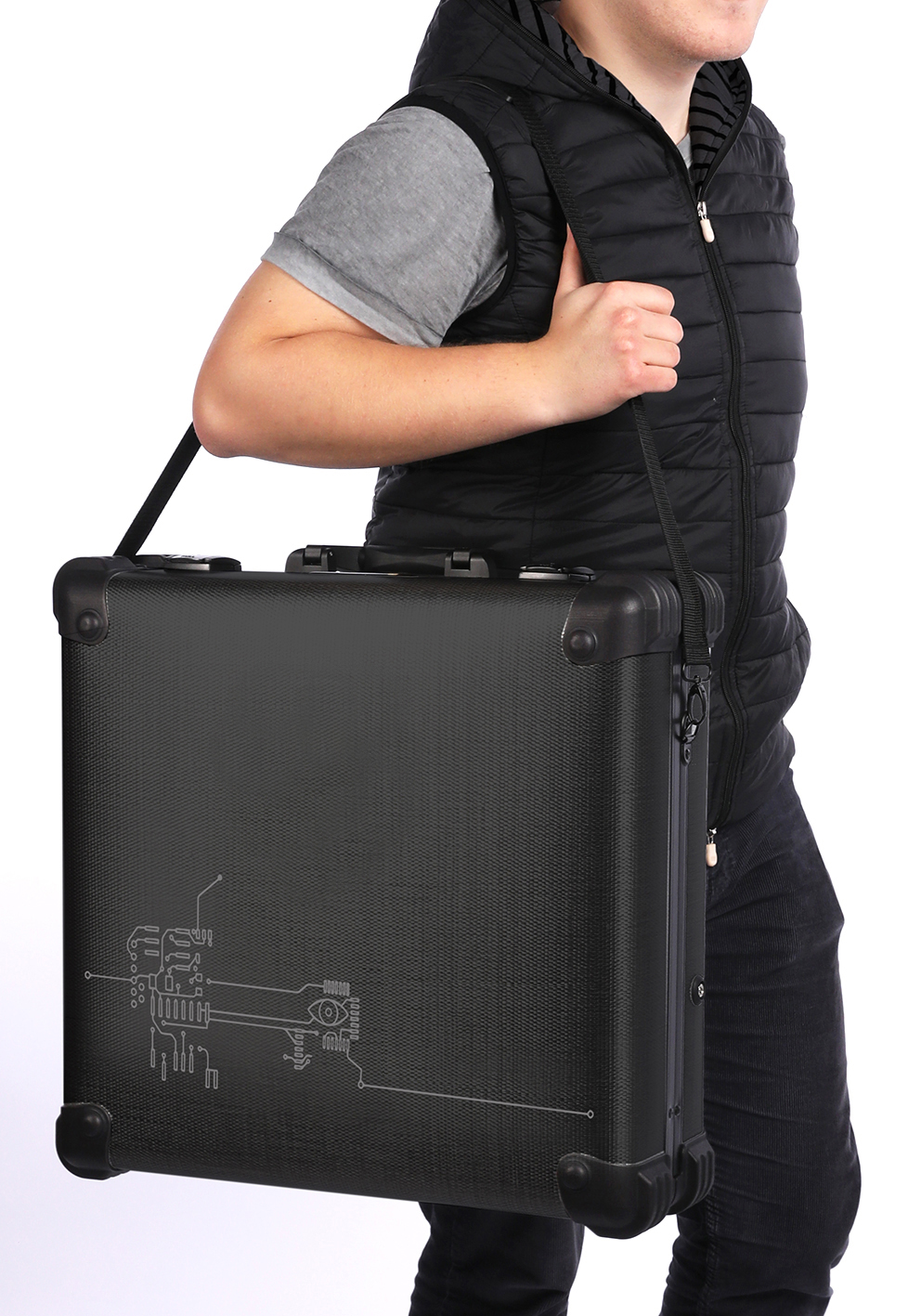

Compact Transport Case

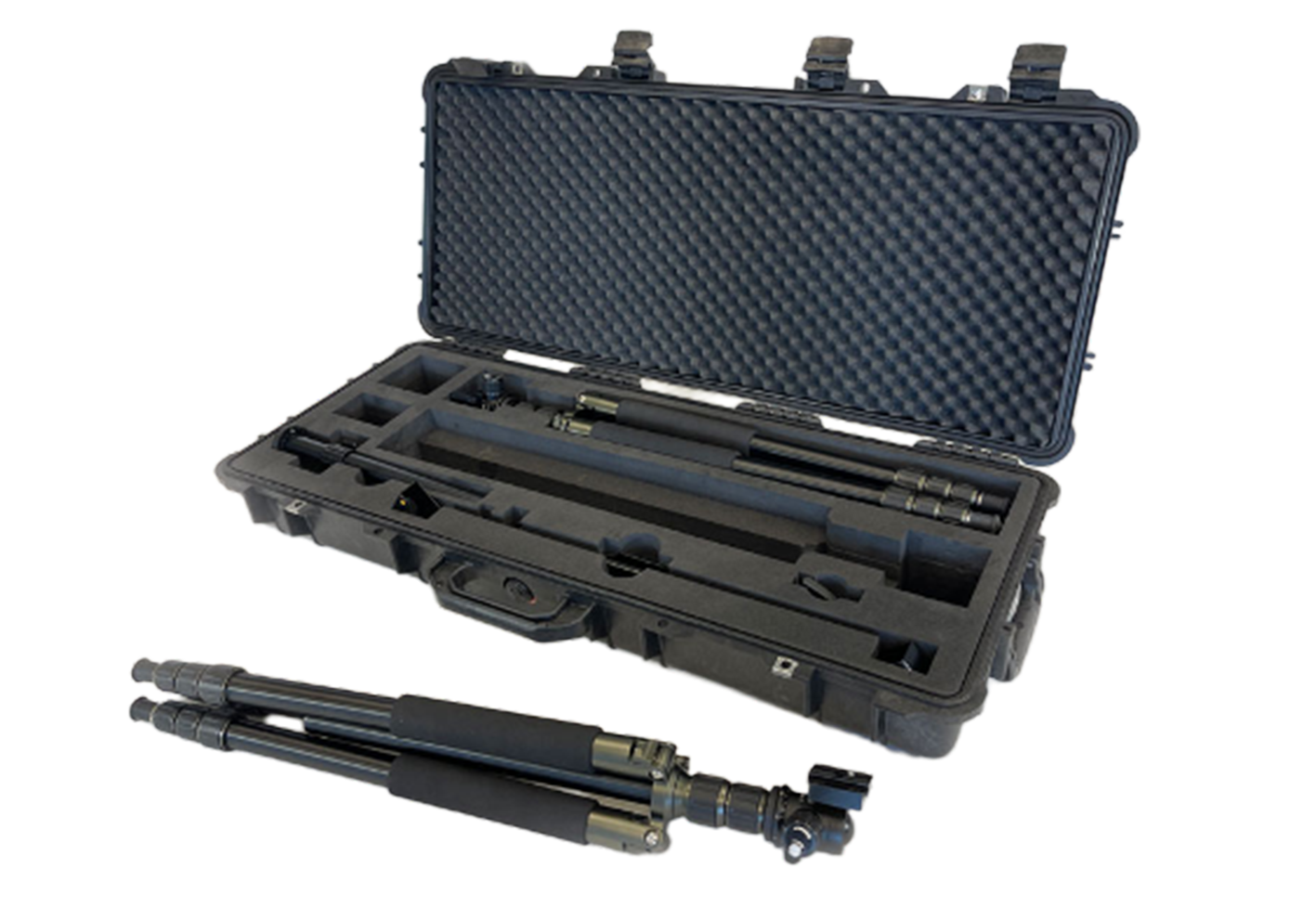

Adjustable Tripod Support System

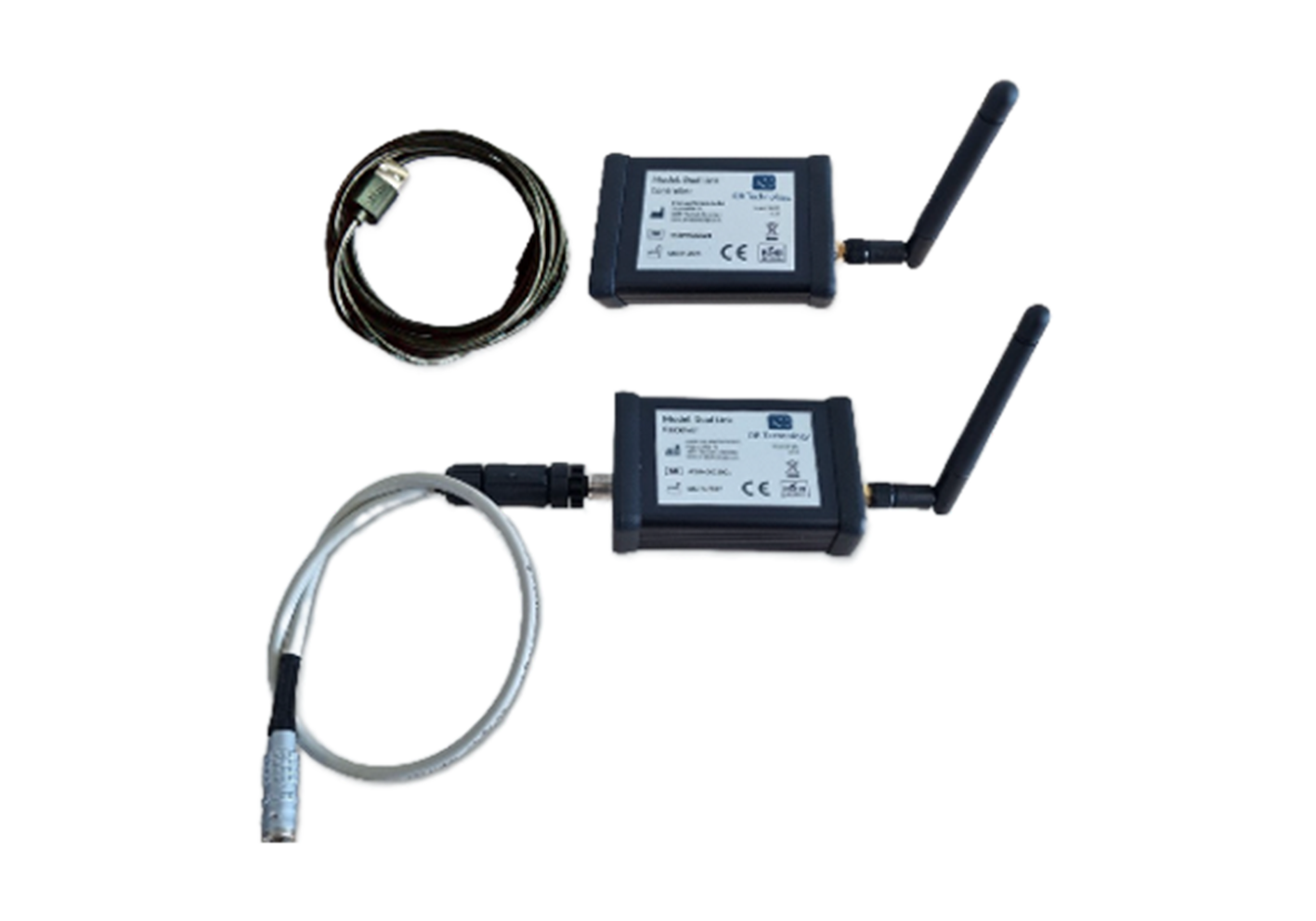

Wireless System Connectivity

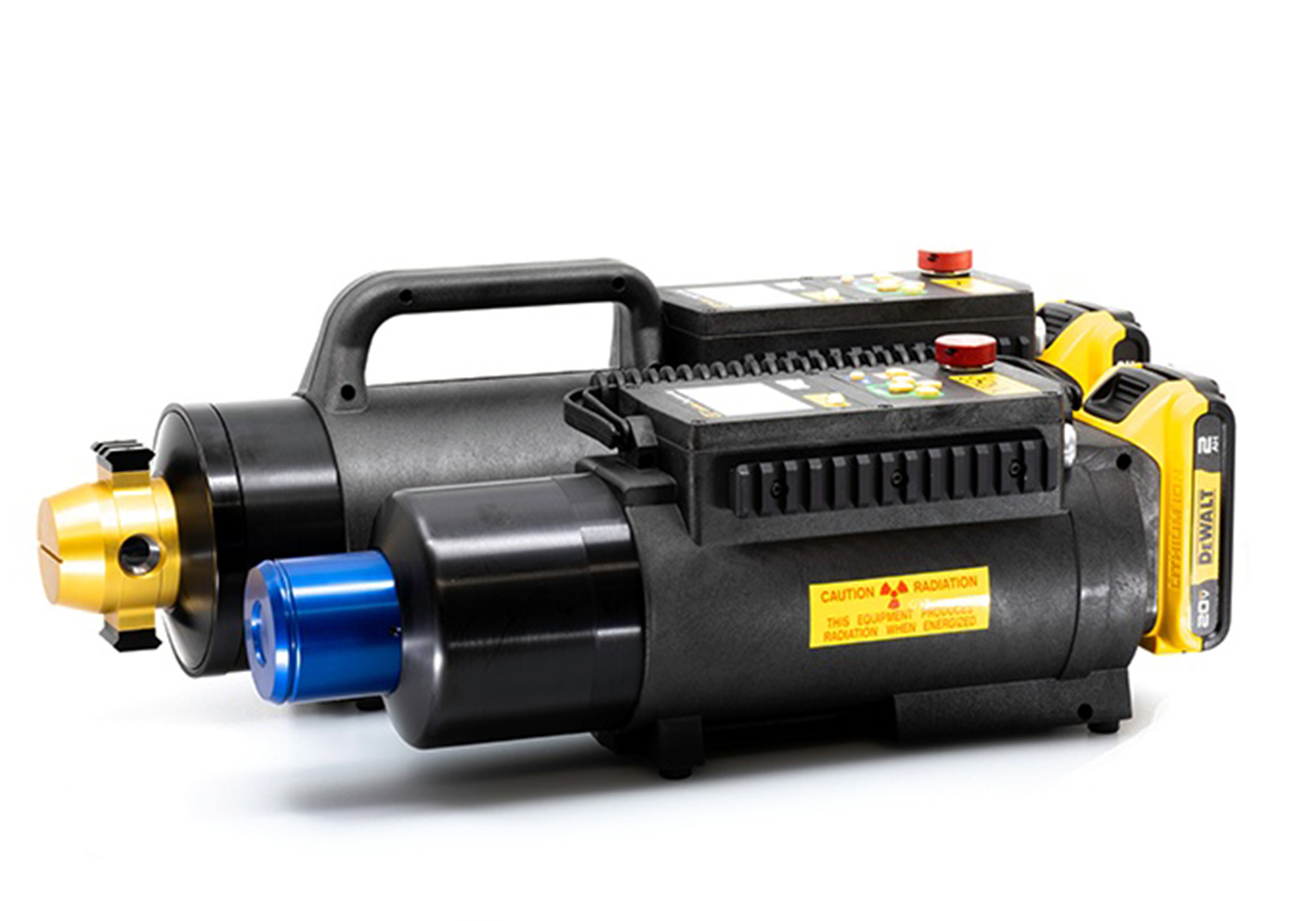

Portable Pulsed X-Ray Generator

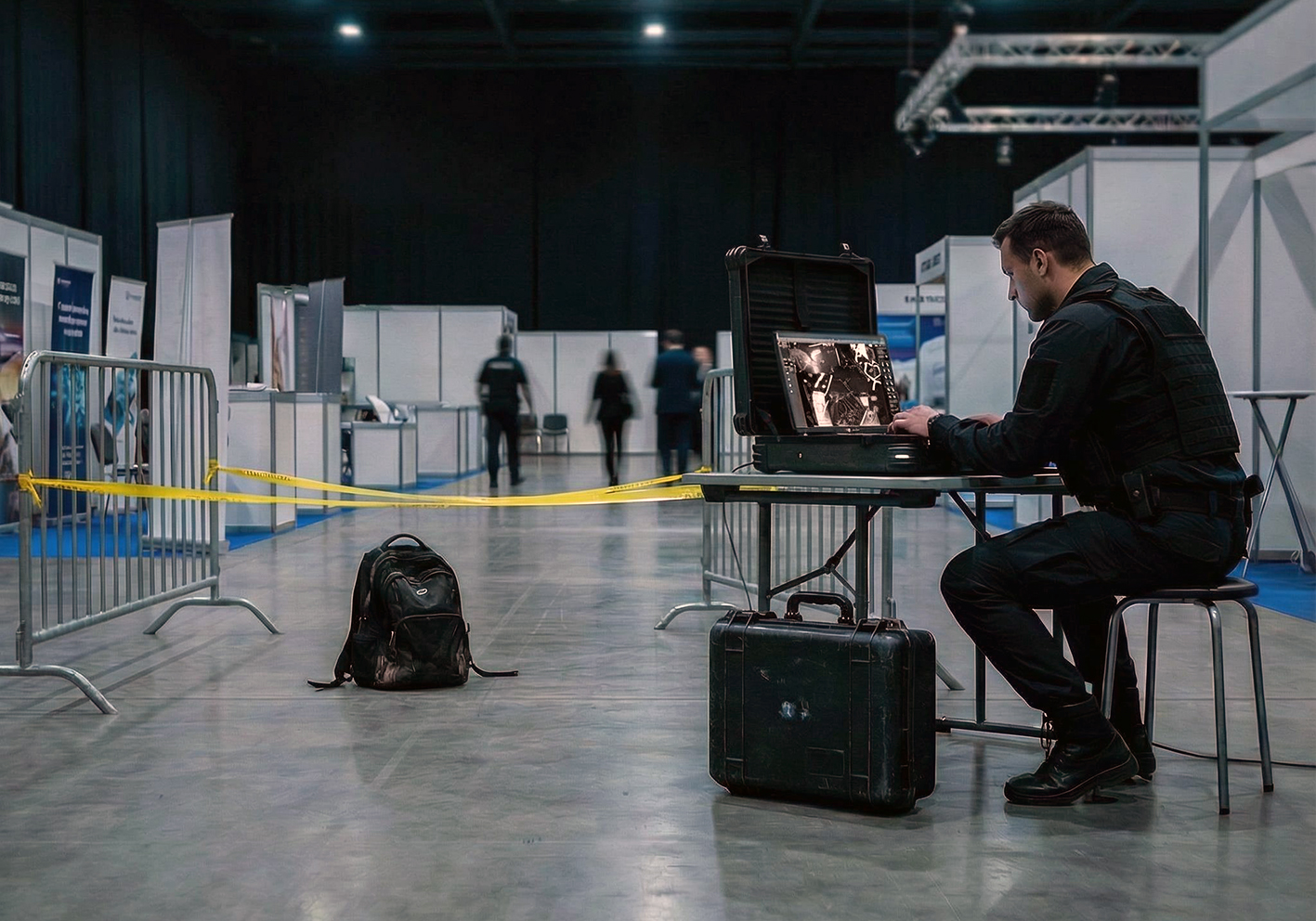

Rapid Security Inspection
Benefits & Applications
Client Benefits
- Rapid Field Deployment: Lightweight components allow fast setup for inspection tasks in dynamic environments.
- Flexible Inspection Capability: Portable system allows inspection of suspicious objects in locations where fixed scanners cannot be used.
- High Image Quality: High resolution detector and advanced image processing support detailed inspection results.
- Operational Mobility: Compact design enables transport and use in vehicles, field operations, or temporary checkpoints.
- Efficient Investigation Support: Enables rapid inspection during security incidents or forensic investigations.
- Reliable Imaging Performance: High voltage pulsed generator provides strong penetration capability for dense objects.
- User Friendly Operation: Touchscreen console and intuitive software support efficient operator workflow.
Use Cases
- Law Enforcement Inspections: Examination of suspicious objects during investigative operations.
- Explosive Ordnance Disposal (EOD): Portable radiography supporting bomb disposal teams.
- Border and Customs Inspections: Field inspection of suspicious items during enforcement operations.
- Forensic Investigations: Radiographic examination of evidence and objects.
- Critical Infrastructure Protection: Mobile inspection capability for security response operations.
- Event Security Operations: Temporary deployment for inspection of suspicious items during public events.
Integration & Compatibility
- Digital Image Management: Supports DICONDE compatible image formats for radiographic workflows.
- Wireless Detector Communication: WLAN enabled detector supports flexible deployment.
- Generator Control Integration: Integrated software enables communication with the X-ray generator.
- Data Export Capability: Inspection images can be stored and transferred for analysis or reporting.
Deployment Options
- Installation Type: Portable inspection system designed for field deployment.
- Operational Environment: Suitable for indoor and outdoor inspection operations.
- Setup Configuration: Tripods and detector mounts allow flexible positioning for different inspection scenarios.
- Mobile Operation: Lightweight components support transport and rapid operational readiness.
Technical Specifications
- Detector Active Area: 35.84 cm × 43.08 cm.
- Detector Resolution: 2560 × 3072 pixels.
- Pixel Pitch: 140 µm.
- Scintillator Type: Gd₂O₂S:Tb (Gadox).
- X-Ray Generator Output: Up to 370 kV.
- Pulse Rate: 10 pulses per second.
- Maximum Pulses: Up to 3000 pulses per hour.
- Pulse Duration: Approximately 10 nanoseconds.
- Generator Weight: 8.3 kg including battery.
- Acquisition Console Screen: 21.5 inch Full HD touchscreen.
- Console Memory: 16 GB RAM.
- Storage: 512 GB SSD.
- Wireless Connectivity: WLAN enabled detector communication.
- Detector Protection: IP67 dust and water resistant.
- Operating Temperature: −20°C to +50°C.
