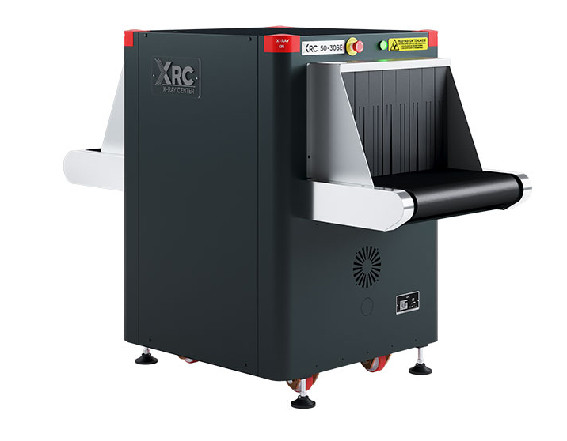

XRC 50-30SE
SMALL PARCEL AND BAGGAGE
The XRC 50-30SE is one of the smallest tunnel sizes of the XRC baggage and parcel product range. It detects inorganic objects and provides an excellent image in an economical single energy (SE-Single Energy) diode array platform. It is a preferred model for locations with limited operating space.
Small handbags, packages parcels and cabin baggage are suitable for scanning. Institutions ensure that packages are inspected in places where inspection is required, such as courts, police departments, offices, shopping malls, prisons and hotels.
Downloads
XRC 50-30SE (english)
0.43MB
XRC 50-30SE (german)
0.44MB
Download
XRC 50-30SE (english)
Subscribe to download
Download
XRC 50-30SE (english)
Success
Download link sent to your email!
Download
XRC 50-30SE (german)
Subscribe to download
Download
XRC 50-30SE (german)
Success
Download link sent to your email!
XRC 50-30SE
APPLICATION AREAS
FEATURES & SPECIFICATIONS
XRC 50-30SE
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
XRC 50-30SE
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN
XRC 50-30SE

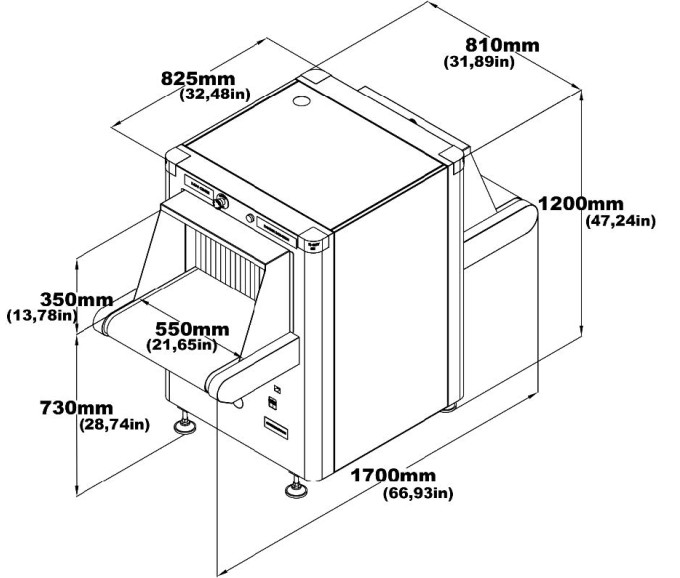

- TUNNEL SIZE: 550 mm x 350 mm
- DIMENSIONS: 1,700 mm x 1,200 mm x 810 mm
- APPROX. WEIGHT UNPACKED: ~415 kg
- CONVEYOR HEIGHT: 730 mm
- CONVEYOR LOAD CAPACITY: 165 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 5amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 10 mm guaranteed; 12 mm typical
- WIRE RESOLUTION: 38 AWG guaranteed; 40 AWG typical
- ANODE VOLTAGE: 100 kV, operating at 90 kV
- TUBE CURRENT: 0.5 mA
- BEAM DIRECTION: Vertically upward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
XRC 50-30SE
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
