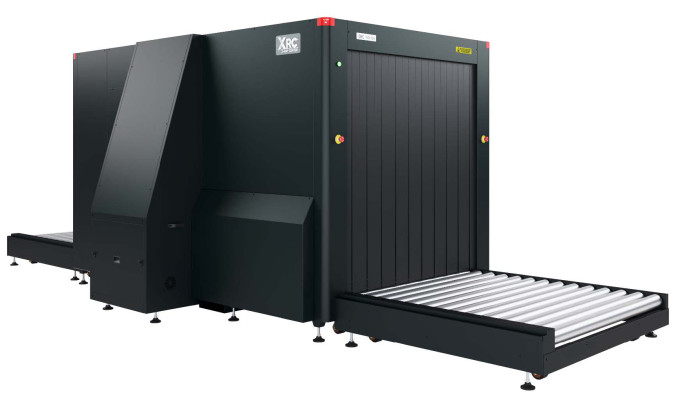

XRC 150-165 (200kV)
PALLET AND CARGO
XRC 150-165 provides excellent performance thanks to its 200kV generator. It facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. Thanks to its multi-diode structure and quality in imaging of scanned materials, image is colored based on density and shows organic, inorganic and mixed materials in different tones.
It is designed with the latest technology to scan medium and large packages on a pallet. This x-ray machine is one of the most suitable solutions for use in high security facilities such as freight companies, terminals, airports, customs and general cargo.
Downloads
XRC 150-165 (200kV) (english)
0.48MB
XRC 150-165 (200kV) (german)
0.48MB
Download
XRC 150-165 (200kV) (english)
Subscribe to download
Download
XRC 150-165 (200kV) (english)
Download link sent to your email!
Download
XRC 150-165 (200kV) (german)
Subscribe to download
Download
XRC 150-165 (200kV) (german)
Download link sent to your email!
XRC 150-165 (200kV)
APPLICATION AREAS
FEATURES & SPECIFICATIONS
- PROGRAMMABLE FUNCTION KEYS PARCEL COUNTER
- DATE AND TIME DISPLAY
- VIRTUAL THREAT IMAGE PROJECTION (TIP)
- ORGANIC/INORGANIC THREAT ALARM OPERATOR
- TRAINING PROGRAM (OTP)
- UPS (FOR COMPUTER SUPPLY)
- MULTI LANGUAGES
- SELF DIAGNOSIS
- GENERATOR TIMER AUTOMATIC STOP CONVEYOR
- BARCODE READER SYSTEM
- EXTERNAL CAMERA ARCHIVING
- REMOTE VIEWING STATION
- RECHECK STATION
- NETWORK SUPERVISORY SYSTEM (NSS)
- REMOTE ACCESS CONNECTION
- SMART CARD LOGIN

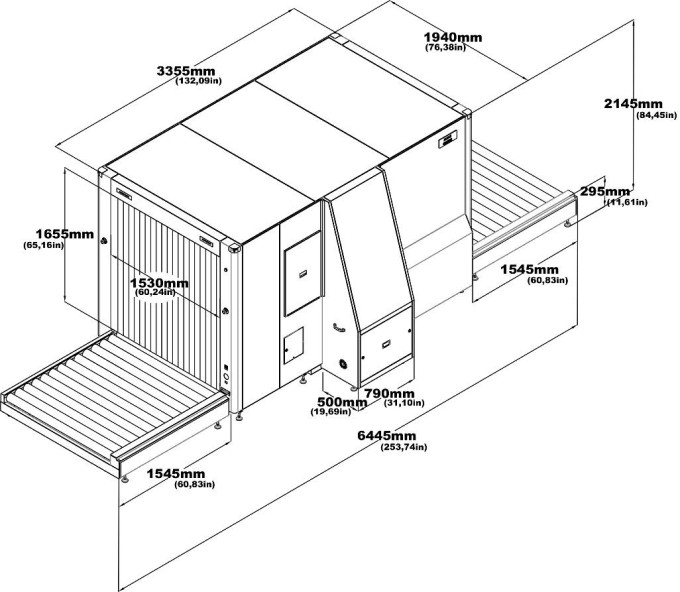

- TUNNEL SIZE: 1,530 mm x 1,655 mm
- DIMENSIONS: 6,445 mm x 2,145 mm x 2,440 mm
- APPROX. WEIGHT UNPACKED: ~2,450 kg
- CONVEYOR HEIGHT: 295 mm
- CONVEYOR LOAD CAPACITY: 3,000 kg Evenly Distributed
- SYSTEM POWER: 110/220V AC ± 10% 50/60 Hz, 10amp max.
- CONVEYOR SPEED: 0.20 m/sec. Forward or Reverse
- STEEL PENETRATION: 50 mm guaranteed; 52 mm typical
- WIRE RESOLUTION: 36 AWG guaranteed; 38 AWG typical
- ANODE VOLTAGE: 200 kV, operating at 200 kV
- TUBE CURRENT: 1.2 mA
- BEAM DIRECTION: Horizontally sideward
- ARTICLE SEPARATION: Low Z, Medium Z, High Z to 0.5 Z Accuracy
- COOLING: Oil and forced air cooling
- PROCESSOR: Intel® Core™ i5 (or superior)
- MONITOR: 21.5” Flat (or superior)
- MEMORY: 4 GB RAM (or superior)
- VIDEO CARD: 2 GB (or superior)
- HARD DRIVE: 1 TB (or superior)
- USB PORT: 6 port (or superior)
- OPERATING SYSTEM: Linux
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
